Shaping Tool


Details

Profiling and copy dressing of grinding wheels makes high demands on profile retention capability and thus on wear resistance of the diamond tool.Wherever diamond blade type tools can not meet these requirements due to the specific grinding wheel geometry. Precision ground shaping tools are the solution. Shaping tools feature the unique "structure-cut" to ensure optimum tool life, they are manufactured only from the highest grade of natural diamonds and undergo stringent quality control during manufacturing.

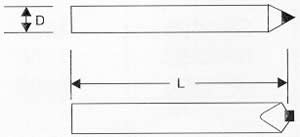

Type CAT No. Radius in Inches Dimensions
60° Chisel
DM 1012
DM 1013
DM 1014
DM 1015

HANK SIZE 3/8" x 2.1/2"
3/8" x 3"
7/16" x 2.1/2
7/16" x 3

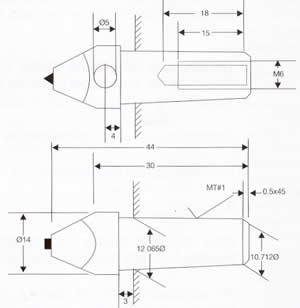

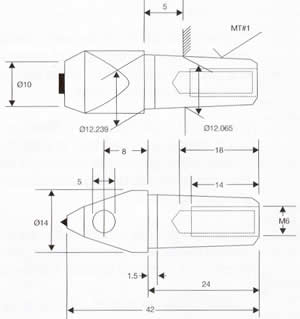

Copying
Fortuna

Copying
Schaudt
